YG-1

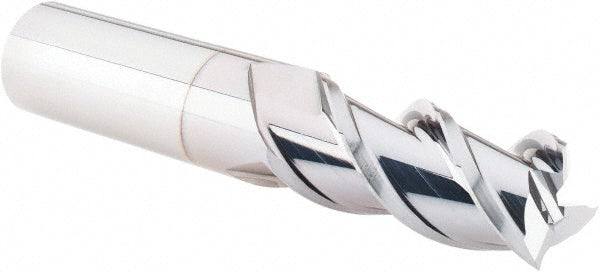

3/4in" 3-Flute Solid Carbide Square End Mill, TiCN - YG-1 28598TC

MFR# 28598TCSeries E5981

$236.76List $303.65 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4in

Flutes3

MaterialSolid Carbide

CoatingTiCN

Description

The YG-1 28598TC is a 3/4in 3-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. Suited for non-ferrous metal. 1-5/8in length of cut, 4in overall length. Series E5981.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1-5/8in

Length of cut range1.5000 - 2.0000

Length typeRegular

Material gradeMicrograin

Mill diameter in3/4in

Mill diameter tolerance0.0000 to -0.0005 in

Number of flutes3

Overall length in4in

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/4in

Shank diameter tolerance+0.0000 to -0.0003 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
