YG-1

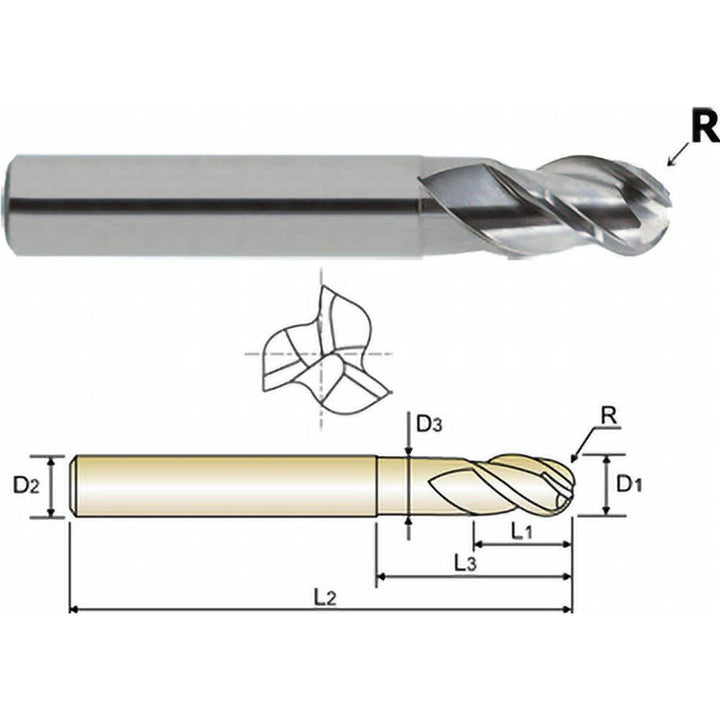

1/2" 3-Flute Solid Carbide Ball End Mill - YG-1 38593

MFR# 38593Series E5975

$88.64List $113.68 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The YG-1 38593 is a 1/2 3-flute Solid Carbide (Micrograin) ball end mill. Suited for aluminum & non-ferrous. 3/4 length of cut, 3-1/2 overall length. Series E5975.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle40

Length of cut in3/4

Length typeLong

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance0.0000 to -0.0012 in

Neck diameter0.4760

Neck length1.3750

Number of flutes3

Overall length in3-1/2

Primary workpiece materialAluminum & Non-Ferrous

Shank diameter in1/2

Shank diameter tolerance0.0000 to -0.0003 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
