YG-1

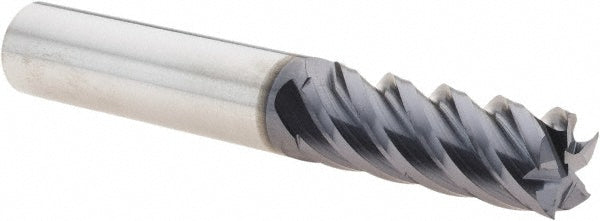

3/8in" 5-Flute Solid Carbide Square End Mill, TiAlN - YG-1 86584TF

MFR# 86584TFSeries E5067

$77.83List $99.82 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8in

Flutes5

MaterialSolid Carbide

CoatingTiAlN

Description

The YG-1 86584TF is a 3/8in 5-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel. 1in length of cut, 2-1/2in overall length. Series E5067.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiAlN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1in

Length typeRegular

Material gradeMicrograin

Mill diameter in3/8in

Mill diameter tolerance0.0000 to -0.0012 in

Number of flutes5

Overall length in2-1/2in

Primary workpiece materialSteel; Stainless Steel

Secondary workpiece materialCast Iron; Non-Ferrous Metal; Super Alloys & Titanium

Shank diameter in3/8in

Shank diameter tolerance+0.0000 to -0.0003 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
