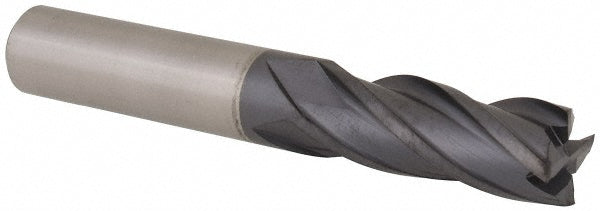

3/8" 4-Flute Solid Carbide Square End Mill - YG-1 GM153024

YG-1

3/8" 4-Flute Solid Carbide Square End Mill - YG-1 GM153024

MFR# GM153024

$59.61List $76.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The YG-1 GM153024 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 2-1/2 overall length.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance+0.0000 to -0.0003 in
Variable helixNo
Variable indexNo
