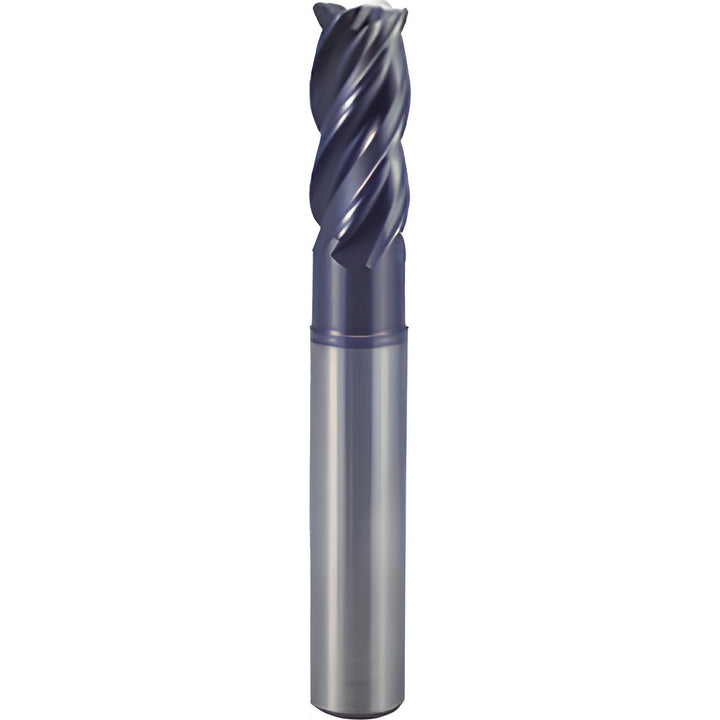

1/2" 4-Flute Solid Carbide Corner Radius End Mill - YG-1 UGMF74906

MFR# UGMF74906Series UGMF74

$208.46List $267.36 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

Description

The YG-1 UGMF74906 is a 1/2 4-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel, stainless steel, cast iron. 5/8 length of cut, 6 overall length. Series UGMF74.

Specifications

Additional informationSpecial Flute Geometry & Multiple Helix Eliminate Vibrations. Excellent Performance for Stainless SteelsMild SteelsCast IronLow/Medium Hardness Materials & All Exotic Materials Up to Hrc40. Advanced Coating for Superior Performance & Tool Life

CentercuttingNo

ChipbreakerNo

Coolant throughNo

Corner radius0.0300

Corner radius tolerance+0.0008 to -0.0008 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Length of cut in5/8

Length typeExtended

Manufacturers catalog numberUGMF74906

Material applicationSteel; Stainless Steel; Cast Iron

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.0000/-0.0012 in

Number of flutes4

Overall length in6

PitchVariable

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length in3-3/8

Secondary workpiece materialSuperalloys & Titanium

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
