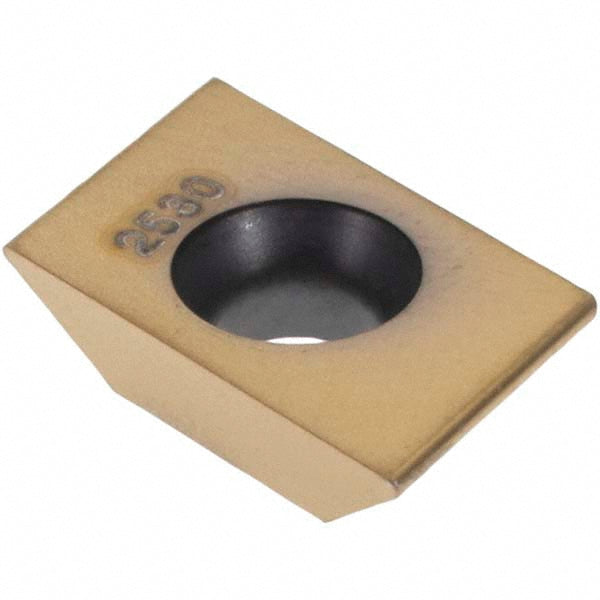

Trapazoid 3/8" IC Solid Carbide Insert, Grade IN350, TiN - 5th Axis DC1750-B

5th Axis

Trapazoid 3/8" IC Solid Carbide Insert, Grade IN350, TiN - 5th Axis DC1750-B

MFR# DC1750-B

$19.79List $21.00 Save 5%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTrapazoid
GradeIN350
MaterialSolid Carbide
CoatingTiN

Description

The 5th Axis DC1750-B is a solid carbide indexable insert, grade IN350, TiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

Chip breakerNone
Coating finishTiN
Coating processPVD
Corner radius0.0150
Cutter series compatibilityDC1750-I; DC1750-M
Hole diameter0.1750
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrapazoid
Insert size5832890
Insert size code5832890
Insert styleCDE
Manufacturers catalog numberDC1750-B
Manufacturer gradeIN350
Material applicationAluminum; Graphite; Cast Iron; Steel; Stainless Steel; Nickel Alloy; Superalloys & Titanium
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakeNegative
Relief angle15
Single or double sided insertDouble
Thickness0.1500
Thickness range0.1500 to 0.1750
Width0.3750
