Accupro

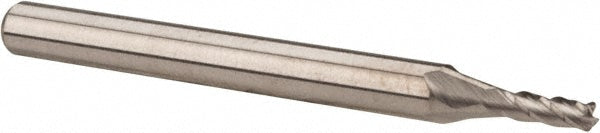

1/16in" 4-Flute Solid Carbide Corner Radius End Mill - Accupro 12176893
MFR# 12176893
$14.35List $17.48
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/16in
Flutes4
MaterialSolid Carbide
Description
The Accupro 12176893 is a 1/16in 4-flute Solid Carbide (Micrograin) corner radius end mill. 3/16in length of cut, 1-1/2in overall length.
Specifications
CentercuttingYes
Corner radius0.0100
Corner radius tolerance0.00100 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in3/16in
Material gradeMicrograin
Mill diameter in1/16in
Mill diameter tolerance+0.000200/-0.000800 in
Number of flutes4
Overall length in1-1/2in
Shank diameter in1/8in
Shank diameter tolerance-0.0001/-0.0004 in
Single or double endSingle
Variable indexNo
