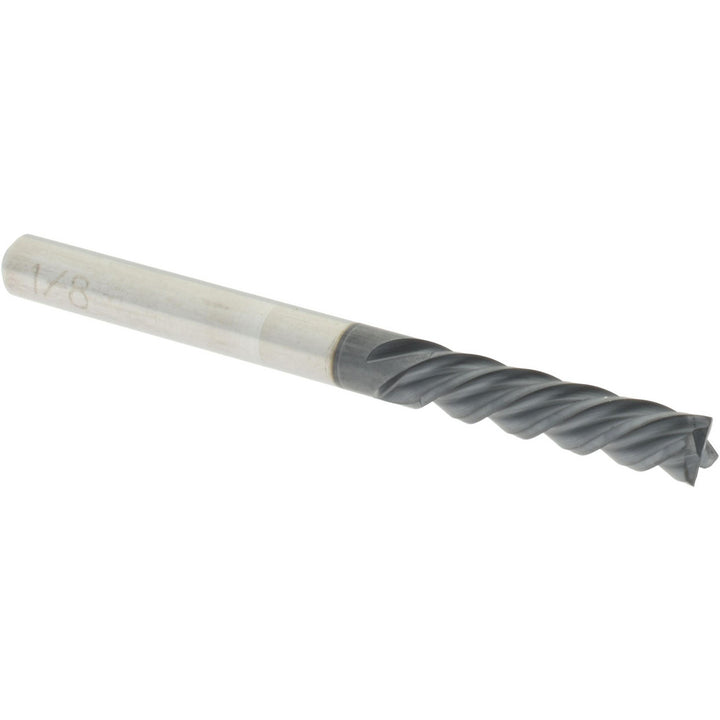

1/8" 4-Flute Solid Carbide Square End Mill, AlTiN - Accupro 12176971
MFR# 12176971
$18.11List $22.06
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Accupro 12176971 is a 1/8 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1/2 length of cut, 1-1/2 overall length.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionLeft Hand
Flute typeSpiral
Helix angle40
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Material gradeMicrograin
Mill diameter in1/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0004 in
Variable helixNo
