Accupro

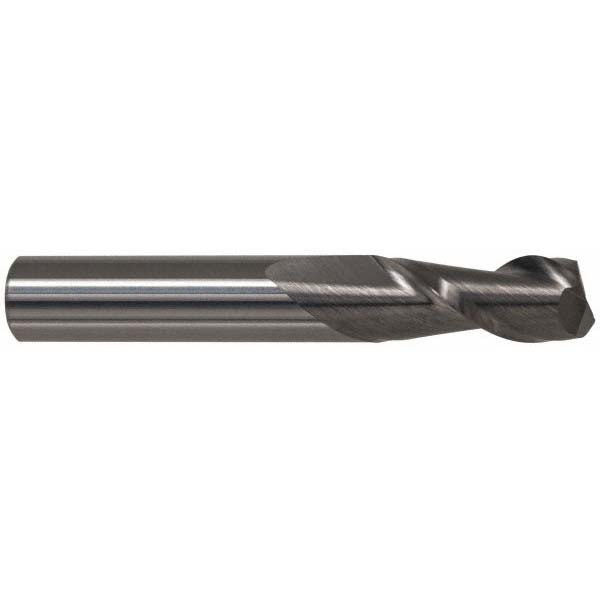

0.1969" 2-Flute Solid Carbide Square End Mill - Accupro 12177224
MFR# 12177224
$58.57List $71.33
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
Description
The Accupro 12177224 is a 0.1969 2-flute Solid Carbide (Micrograin) square end mill. 0.3937 length of cut.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut0.3937
Length of cut range0.3000 - 0.5000
Length typeLong
Material gradeMicrograin
Mill diameter0.1969
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length (mm)100.00
Reach length (mm)60.00
Shank diameter (mm)6.00
Shank diameter tolerance-0.0001/-0.0004 in
Variable helixNo
