Accupro

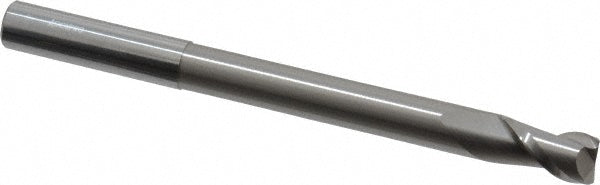

0.3937" 2-Flute Solid Carbide Square End Mill - Accupro 12177230
MFR# 12177230
$112.55List $137.07
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
Description
The Accupro 12177230 is a 0.3937 2-flute Solid Carbide (Micrograin) square end mill. 0.7087 length of cut.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut0.7087
Length of cut range0.7000 - 0.8000
Length typeLong
Material gradeMicrograin
Mill diameter0.3937
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length (mm)120.00
Reach length (mm)83.00
Shank diameter (mm)10.00
Shank diameter tolerance-0.0001/-0.0004 in
Variable helixNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
