Accupro

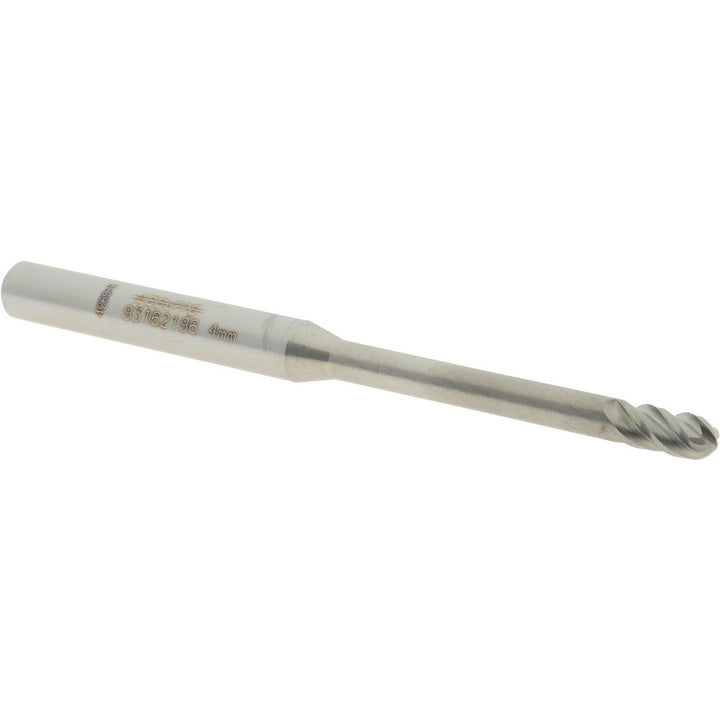

0.1575" 4-Flute Solid Carbide Ball End Mill - Accupro 12177239
MFR# 12177239
$55.82List $61.28
Save 8%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
Description
The Accupro 12177239 is a 0.1575 4-flute Solid Carbide (Micrograin) ball end mill.
Specifications
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut (mm)8.00
Length typeLong
Material gradeMicrograin
Mill diameter0.1575
Mill diameter tolerance+0.0000 to -0.0025 in
Neck diameter0.1510
Number of flutes4
Overall length (mm)75.00
Reach length1.4960
Shank diameter (mm)6.00
Shank diameter tolerance-0.0001 to -0.0004 in
Single or double endSingle
Variable helixNo
Variable indexNo
