Accupro

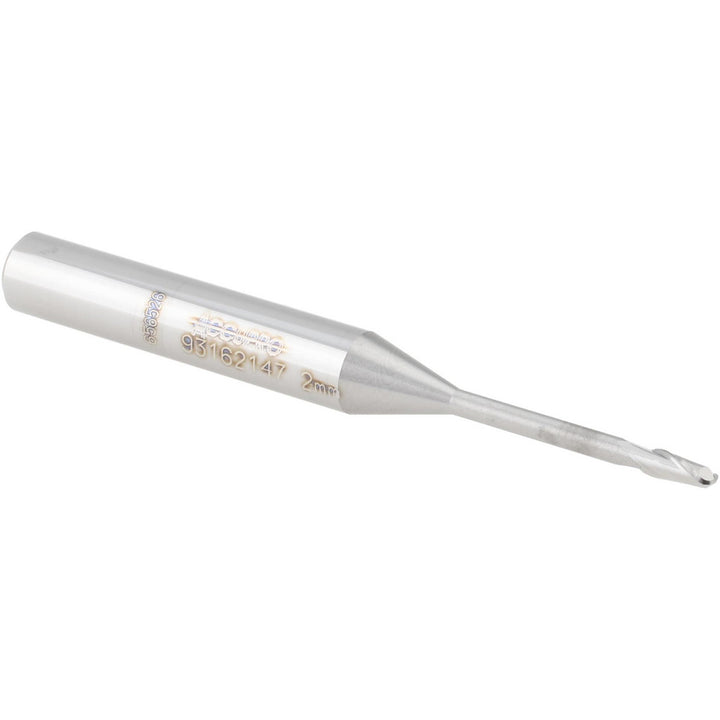

0.0787" 2-Flute Solid Carbide Ball End Mill - Accupro 12177251
MFR# 12177251
$54.92List $66.88
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
Description
The Accupro 12177251 is a 0.0787 2-flute Solid Carbide (Micrograin) ball end mill.
Specifications
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut (mm)5.00
Length typeLong
Material gradeMicrograin
Mill diameter0.0787
Mill diameter tolerance+0.0000/-0.0025 in
Neck diameter (mm)1.45
Number of flutes2
Overall length (mm)57.00
Reach length0.7870
Shank diameter (mm)6.00
Shank diameter tolerance-0.0001/-0.0004 in
Single or double endSingle
Variable helixNo
Variable indexNo
