Accupro

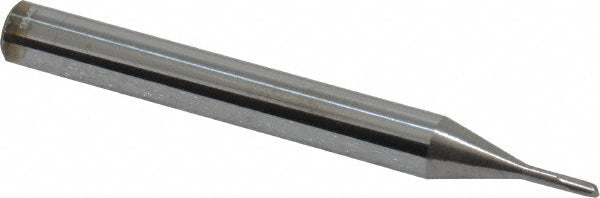

0.0591" 2-Flute Solid Carbide Corner Radius End Mill - Accupro 12177341
MFR# 12177341
$40.26List $49.03
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
Description
The Accupro 12177341 is a 0.0591 2-flute Solid Carbide (Micrograin) corner radius end mill.
Specifications
CentercuttingYes
Corner radius0.0059
Corner radius tolerance0.00100 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.3150
Material gradeMicrograin
Mill diameter0.0591
Mill diameter tolerance+0.000200 to -0.000800 in
Number of flutes2
Overall length (mm)57.00
Reach length (mm)7.00
Shank diameter (mm)6.00
Shank diameter tolerance-0.0001 to -0.0004 in
Single or double endSingle
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
