Accupro

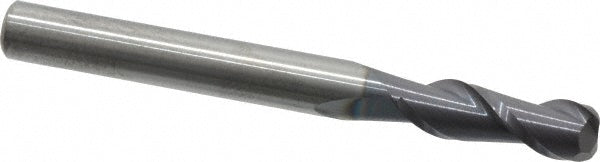

1/4" 2-Flute Solid Carbide Corner Radius End Mill, AlTiN - Accupro 12181351
MFR# 12181351
$31.33List $38.16
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes2
MaterialSolid Carbide
CoatingAlTiN
Description
The Accupro 12181351 is a 1/4 2-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 3/4 length of cut, 2-1/2 overall length.
Specifications
CentercuttingYes
Coating finishAlTiN
Corner radius0.0600
Corner radius tolerance0.00150 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in3/4
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000000 to -0.002500 in
Number of flutes2
Overall length in2-1/2
Shank diameter in1/4
Shank diameter tolerance-0.0001 to -0.0004 in
Single or double endSingle
Variable indexNo
