Accupro

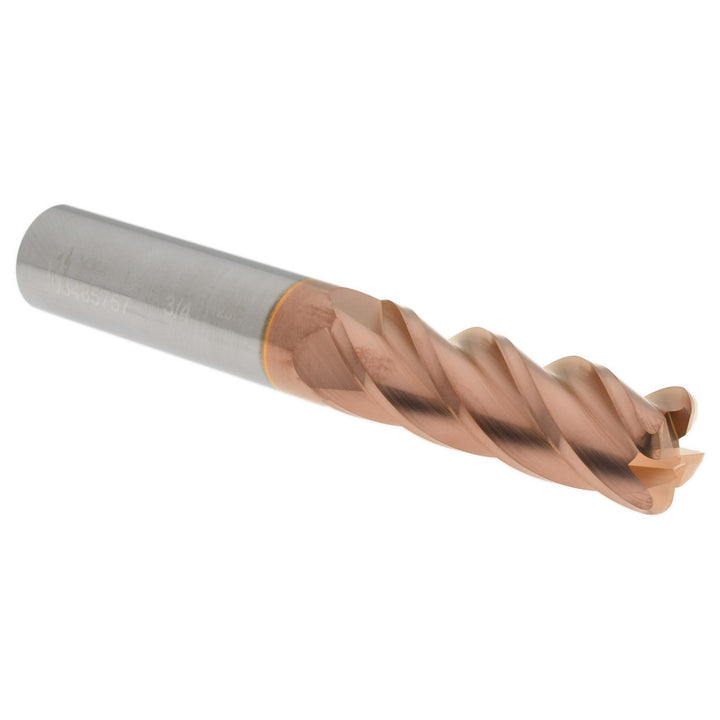

3/4in" 4-Flute Solid Carbide Corner Radius End Mill, TiCN - Accupro 12183143
MFR# 12183143
$245.26List $298.69
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4in
Flutes4
MaterialSolid Carbide
CoatingTiCN
Description
The Accupro 12183143 is a 3/4in 4-flute Solid Carbide (Micrograin) corner radius end mill with a TiCN finish for longer tool life. 2-1/4in length of cut, 5in overall length.
Specifications
CentercuttingYes
Coating finishTiCN
Corner radius0.1250
Corner radius tolerance0.00150 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in2-1/4in
Length typeLong
Material gradeMicrograin
Mill diameter in3/4in
Mill diameter tolerance+0.000000/-0.002500 in
Number of flutes4
Overall length in5in
Shank diameter in3/4in
Shank diameter tolerance-0.0001/-0.0004 in
Single or double endSingle
Variable indexNo
