Accupro

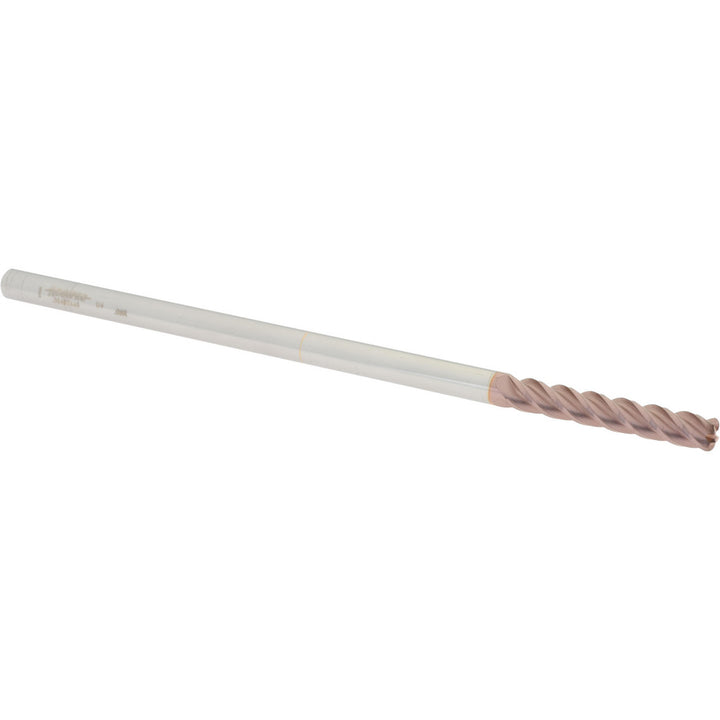

1/4" 4-Flute Solid Carbide Corner Radius End Mill, TiCN - Accupro 12183650
MFR# 12183650
$63.82List $77.72
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingTiCN
Description
The Accupro 12183650 is a 1/4 4-flute Solid Carbide (Micrograin) corner radius end mill with a TiCN finish for longer tool life. 1-1/2 length of cut, 6 overall length.
Specifications
CentercuttingYes
Coating finishTiCN
Corner radius0.0600
Corner radius tolerance0.00150 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1-1/2
Length typeExtra Long
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000000 to -0.002500 in
Number of flutes4
Overall length in6
Shank diameter in1/4
Shank diameter tolerance-0.0001 to -0.0004 in
Single or double endSingle
Variable indexNo
