Accupro

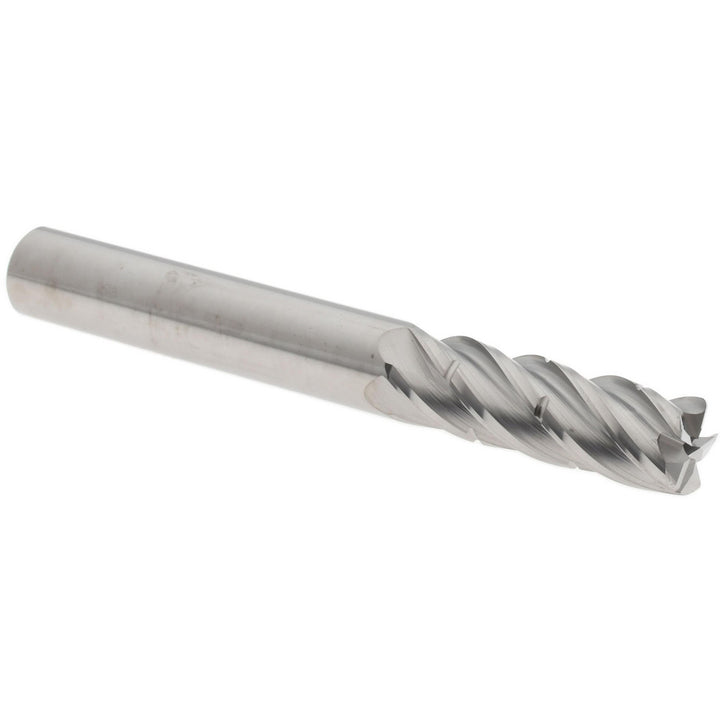

3/8" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Accupro 14735160
MFR# 14735160Series AL-5
$147.06List $179.10
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
Description
The Accupro 14735160 is a 3/8 5-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill. 1-1/8 length of cut, 3 overall length. Series AL-5.
Specifications
CentercuttingNo
ChipbreakerYes
Coolant throughYes
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1-1/8
Length typeStandard
Material applicationAluminum
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000000 to -0.002000 in
Number of flutes5
Overall length in3
Shank diameter tolerance-0.0001 to -0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
