Accupro

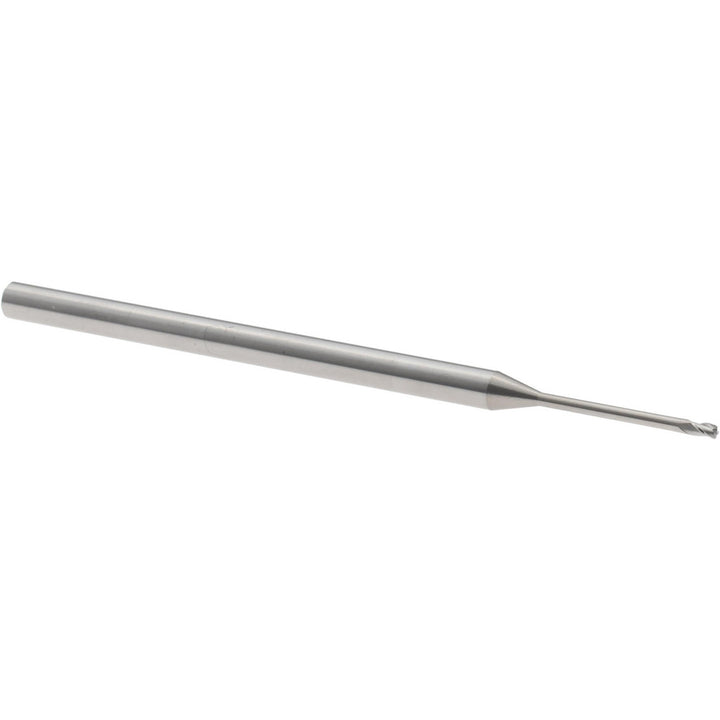

0.0469" 3-Flute Solid Carbide Corner Radius End Mill - Accupro 14796230
MFR# 14796230Series Miniature
$35.01List $42.64
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
Description
The Accupro 14796230 is a 0.0469 3-flute Solid Carbide (Micrograin) corner radius end mill. 2-1/2 overall length. Series Miniature.
Specifications
CentercuttingYes
Corner radius0.0050
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Length of cut0.0700
Material gradeMicrograin
Mill diameter0.0469
Mill diameter tolerance+0.000000/-0.001000 in
Number of flutes3
Overall length in2-1/2
Reach length0.5700
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0003 in
Single or double endSingle
Variable helixNo
Variable indexNo
