Accupro

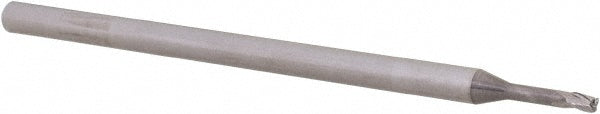

1/16in" 3-Flute Solid Carbide Corner Radius End Mill - Accupro 14796242
MFR# 14796242Series Miniature
$32.19List $39.21
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/16in
Flutes3
MaterialSolid Carbide
Description
The Accupro 14796242 is a 1/16in 3-flute Solid Carbide (Micrograin) corner radius end mill. 2-1/2in overall length. Series Miniature.
Specifications
CentercuttingYes
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Length of cut1.7500in
Material gradeMicrograin
Mill diameter in1/16in
Mill diameter tolerance+0.000000/-0.001000 in
Number of flutes3
Overall length in2-1/2in
Reach length0.3120
Shank diameter in1/8in
Shank diameter tolerance-0.0001/-0.0003 in
Single or double endSingle
Variable helixNo
Variable indexNo
