Accupro

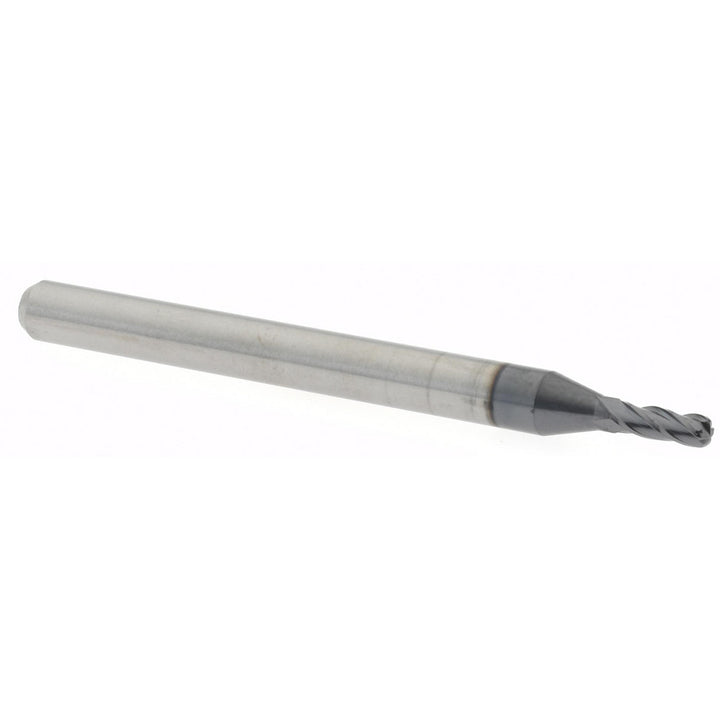

1/16in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Accupro 14796304
MFR# 14796304Series Miniature
$23.74List $28.91
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/16in
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Accupro 14796304 is a 1/16in 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 1-1/2in overall length. Series Miniature.
Specifications
CentercuttingYes
Coating finishAlTiN
Corner radius0.0200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.2500in
Material gradeMicrograin
Mill diameter in1/16in
Mill diameter tolerance+0.000000/-0.001000 in
Number of flutes4
Overall length in1-1/2in
Shank diameter in1/8in
Shank diameter tolerance-0.0001/-0.0003 in
Single or double endSingle
Variable helixNo
Variable indexNo
