Accupro

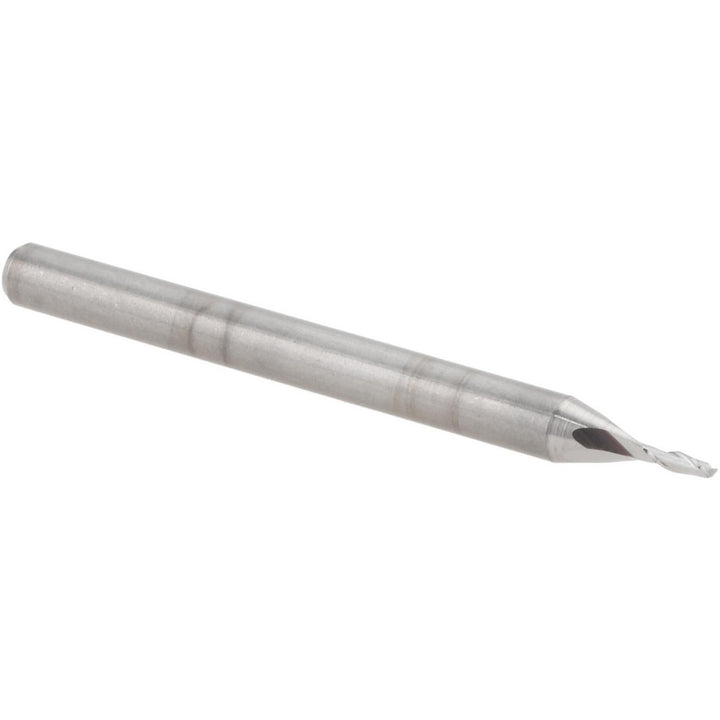

0.0390" 2-Flute Solid Carbide Square End Mill - Accupro 14797106
MFR# 14797106Series ASQSC2-CC-30H
$13.84List $16.86
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
Description
The Accupro 14797106 is a 0.0390 2-flute Solid Carbide (Micrograin) square end mill. 0.1170 length of cut, 1-1/2 overall length. Series ASQSC2-CC-30H.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1170
Length of cut range0.1000 - 0.2000
Material gradeMicrograin
Mill diameter0.0390
Mill diameter tolerance+0.0000/-0.0010 in
Number of flutes2
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0003 in
Single or double endSingle
System of measurementDecimal Inch
Variable helixNo
Variable indexNo
