Accupro
0.0300" 3-Flute Solid Carbide Square End Mill - Accupro 14797160
MFR# 14797160
$29.54List $35.97
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
Description

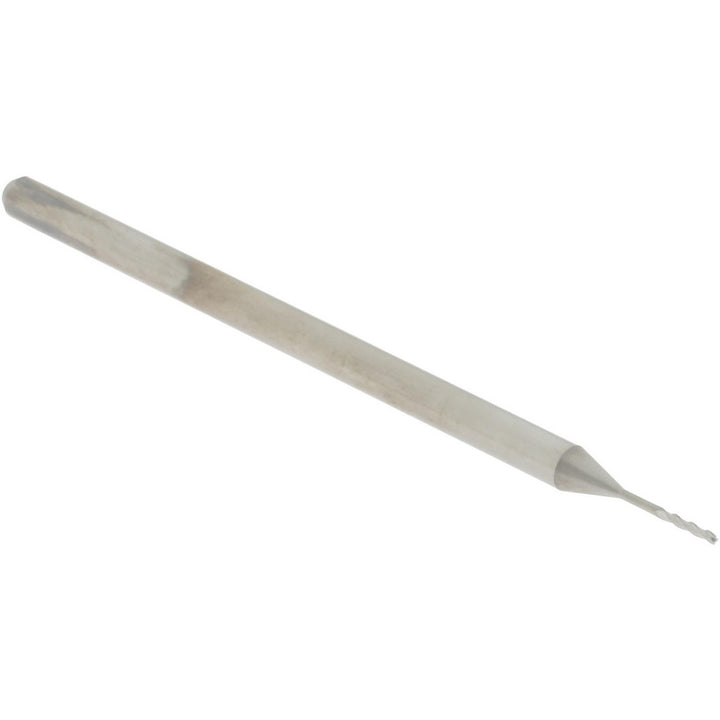

The Accupro 14797160 is a 0.0300 3-flute Solid Carbide (Micrograin) square end mill. 0.1500 length of cut, 2-1/2 overall length.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1500
Length of cut range0.1000 - 0.2000
Material gradeMicrograin
Mill diameter0.0300
Mill diameter tolerance+0.0000/-0.0010 in
Number of flutes3
Overall length in2-1/2
Reach length0.3000
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0003 in
Variable helixNo
Variable indexNo
