Accupro

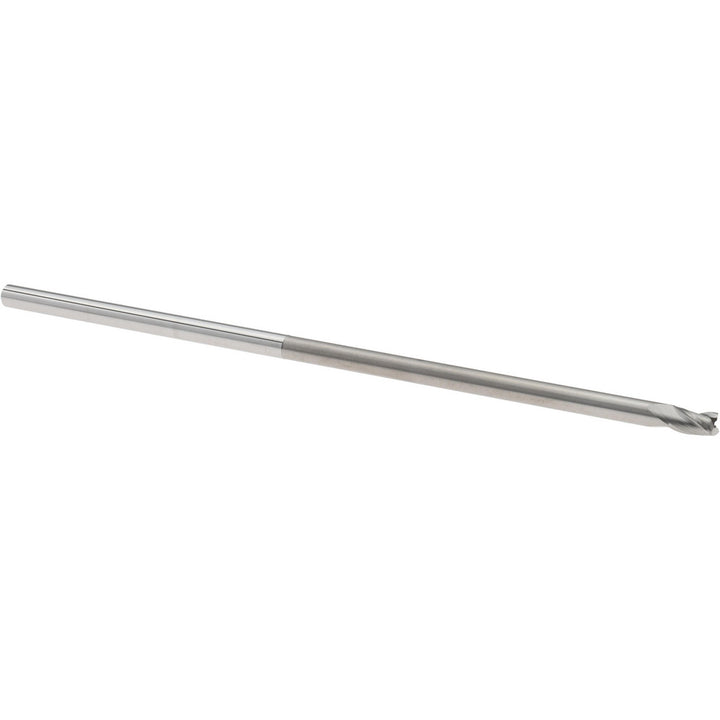

1/8" 3-Flute Solid Carbide Square End Mill - Accupro 14797307
MFR# 14797307Series ASQSC3-CCER
$41.17List $50.14
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide
Description
The Accupro 14797307 is a 1/8 3-flute Solid Carbide (Micrograin) square end mill. 0.1870 length of cut, 4 overall length. Series ASQSC3-CCER.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1870
Length of cut range0.1000 - 0.2000
Material gradeMicrograin
Mill diameter in1/8
Mill diameter tolerance+0.0000/-0.0010 in
Neck length2.5000
Number of flutes3
Overall length in4
Reach length2.2500
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0003 in
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
