Accupro

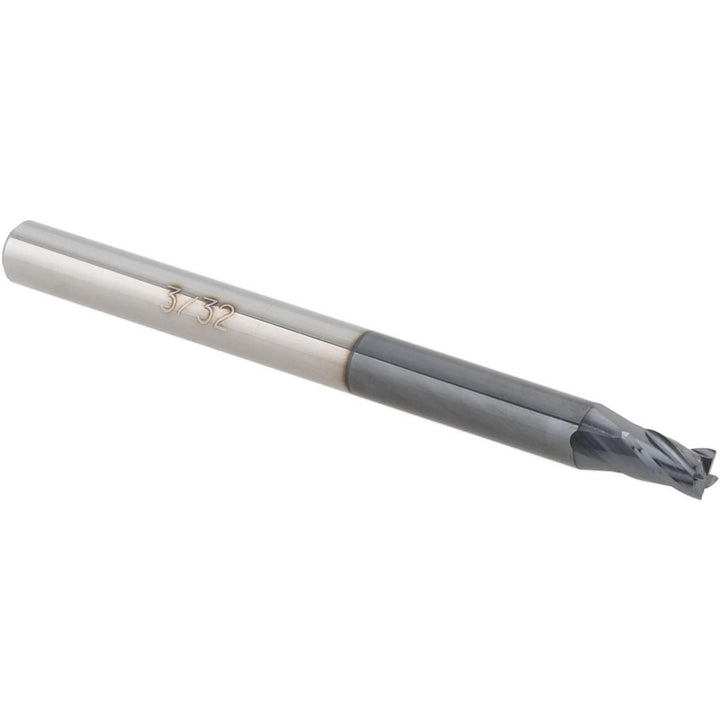

3/32" 4-Flute Solid Carbide Square End Mill, AlTiN - Accupro 14797352
MFR# 14797352Series ASQSC4-AT-CC-30H
$16.43List $20.01
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Accupro 14797352 is a 3/32 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.1390 length of cut, 1-1/2 overall length. Series ASQSC4-AT-CC-30H.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1390
Length of cut range0.1000 - 0.2000
Material gradeMicrograin
Mill diameter in3/32
Mill diameter tolerance+0.0000/-0.0010 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0003 in
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
