Accupro

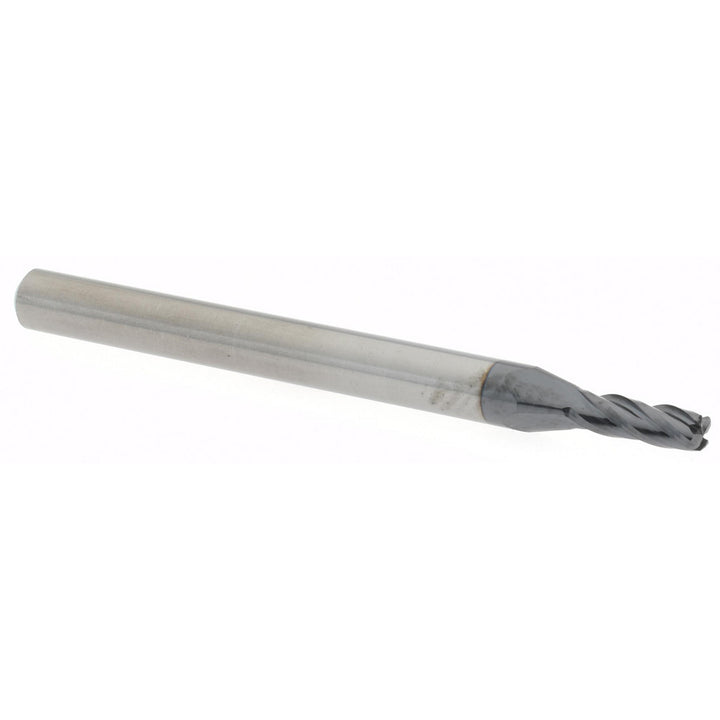

0.0800in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Accupro 14797542
MFR# 14797542Series Miniature
$23.74List $28.91
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Accupro 14797542 is a 0.0800in 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 1-1/2in overall length. Series Miniature.
Specifications
CentercuttingYes
Coating finishAlTiN
Corner radius0.0100
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.4375in
Material gradeMicrograin
Mill diameter0.0800in
Mill diameter tolerance+0.000000/-0.001000 in
Number of flutes4
Overall length in1-1/2in
Shank diameter in1/8in
Shank diameter tolerance-0.0001/-0.0003 in
Single or double endSingle
Variable helixNo
Variable indexNo
