Accupro

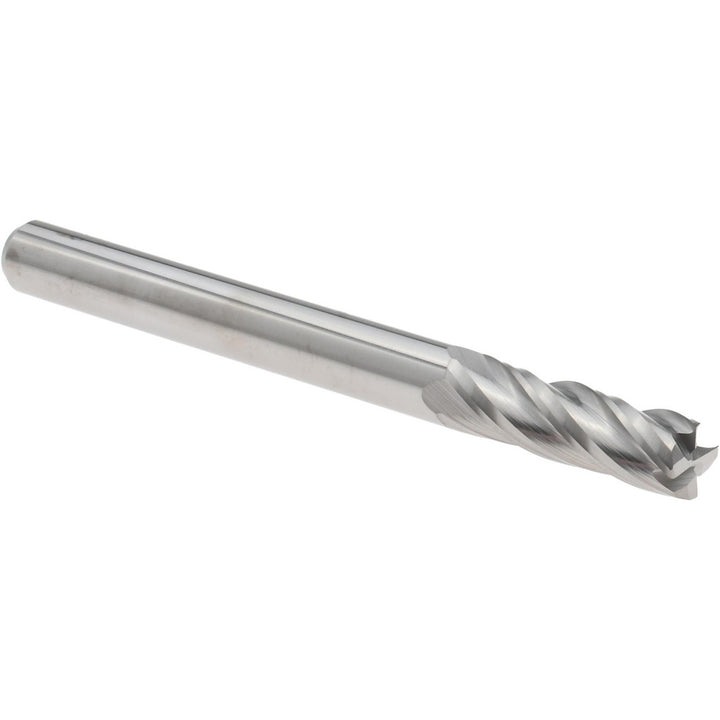

3/16" 4-Flute Solid Carbide Corner Radius End Mill - Accupro 14797580
MFR# 14797580Series Miniature
$19.33List $23.53
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
Description
The Accupro 14797580 is a 3/16 4-flute Solid Carbide (Micrograin) corner radius end mill. 5/8 length of cut, 2 overall length. Series Miniature.
Specifications
CentercuttingYes
Corner radius0.0100
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in5/8
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.000000/-0.001000 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0003 in
Single or double endSingle
Variable helixNo
Variable indexNo
