Accupro

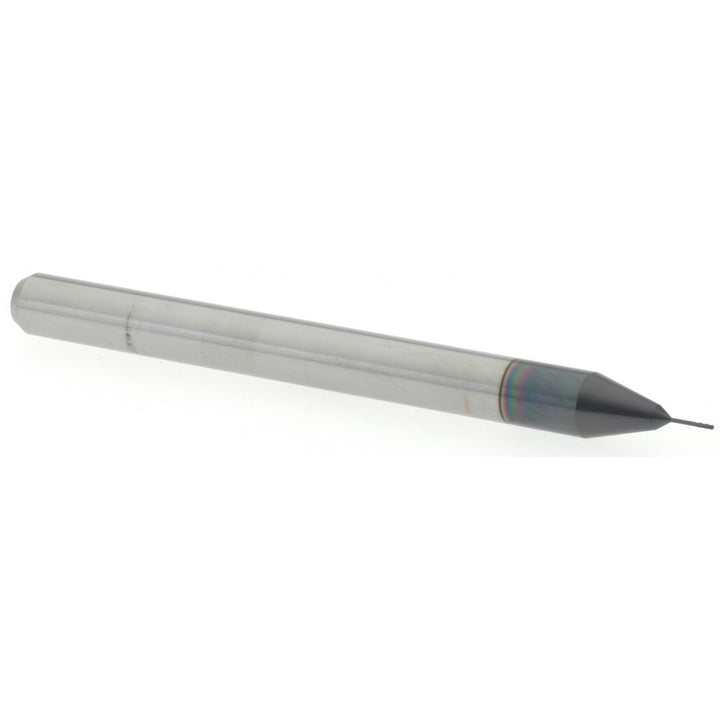

0.0100" 4-Flute Solid Carbide Ball End Mill, AlTiN - Accupro 14968920
MFR# 14968920Series Miniature
$58.98List $71.83
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Accupro 14968920 is a 0.0100 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 2-1/2 overall length. Series Miniature.
Specifications
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Material gradeMicrograin
Mill diameter0.0100
Mill diameter tolerance+0.0000/-0.0010 in
Neck length0.0800
Number of flutes4
Overall length in2-1/2
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0003 in
Single or double endSingle
Variable helixNo
Variable indexNo
