5/16" 3-Flute Solid Carbide Square End Mill, ZrN - Accupro 2500210

Accupro

5/16" 3-Flute Solid Carbide Square End Mill, ZrN - Accupro 2500210

MFR# 2500210Series ASQSC3-Z-CCVH

$81.25List $98.96 Save 17%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes3
MaterialSolid Carbide
CoatingZrN

Description

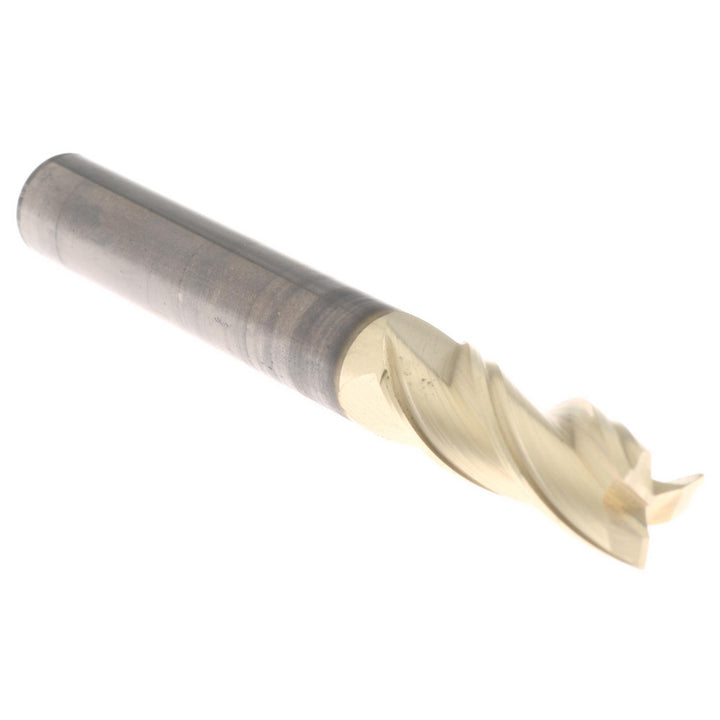

The Accupro 2500210 is a 5/16 3-flute Solid Carbide (Micrograin) square end mill with a ZrN finish for longer tool life. Suited for aluminum & non-ferrous. 13/16 length of cut, 2-1/2 overall length. Series ASQSC3-Z-CCVH.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishZrN
Coating finish familyZrN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30-40
Length of cut in13/16
Length typeRegular
Material gradeMicrograin
Mill diameter in5/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2-1/2
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in5/16
Shank diameter tolerance+0.0001/-0.0004 in
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexNo
