Accupro

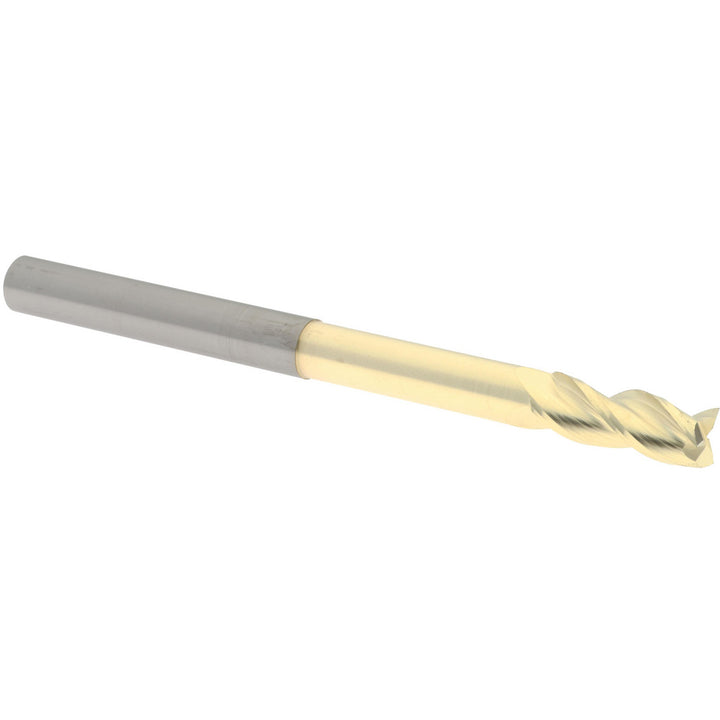

5/16" 3-Flute Solid Carbide Square End Mill, ZrN - Accupro 2500462
MFR# 2500462
$116.98List $142.47
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The Accupro 2500462 is a 5/16 3-flute Solid Carbide (Micrograin) square end mill with a ZrN finish for longer tool life. 13/16 length of cut, 4 overall length.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishZrN
Coating finish familyZrN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in13/16
Length of cut range0.8000 - 1.0000
Material gradeMicrograin
Mill diameter in5/16
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes3
Overall length in4
Reach length in2-1/8
Shank diameter in5/16
Shank diameter tolerance+0.0001/-0.0004 in
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
