Accupro

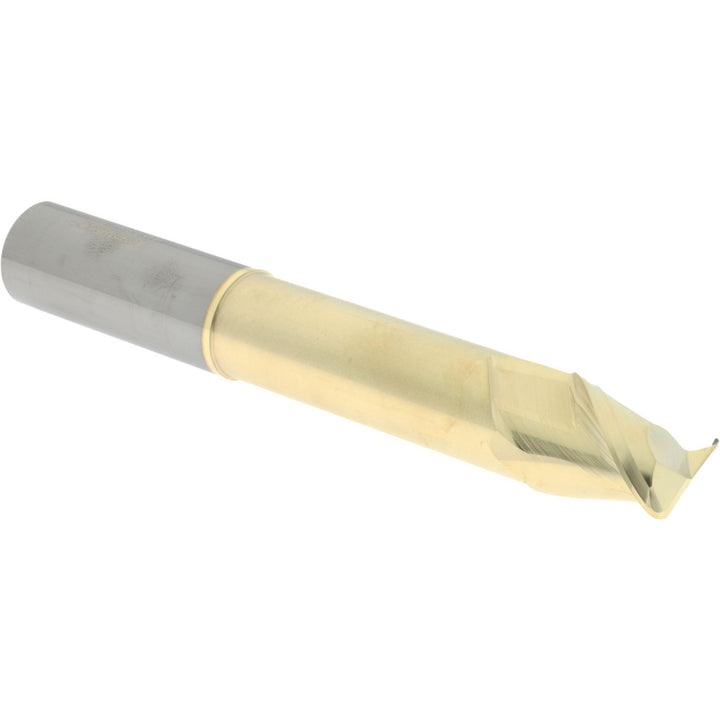

1" 2-Flute Solid Carbide Corner Radius End Mill, ZrN - Accupro 314193
MFR# 314193
$676.73List $824.18
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes2
MaterialSolid Carbide
CoatingZrN
Description
The Accupro 314193 is a 1 2-flute Solid Carbide (Micrograin) corner radius end mill with a ZrN finish for longer tool life. 1-1/4 length of cut, 7 overall length.
Specifications
CentercuttingYes
Coating finishZrN
Corner radius0.1200
Corner radius tolerance+0.00200 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Length of cut in1-1/4
Material gradeMicrograin
Mill diameter in1
Mill diameter tolerance+0.000000/-0.003000 in
Neck diameter0.9500
Number of flutes2
Overall length in7
Reach length in4-3/8
Shank diameter in1
Shank diameter tolerance-0.0001 / -0.0004 in
Single or double endSingle
Variable helixNo
