Accupro

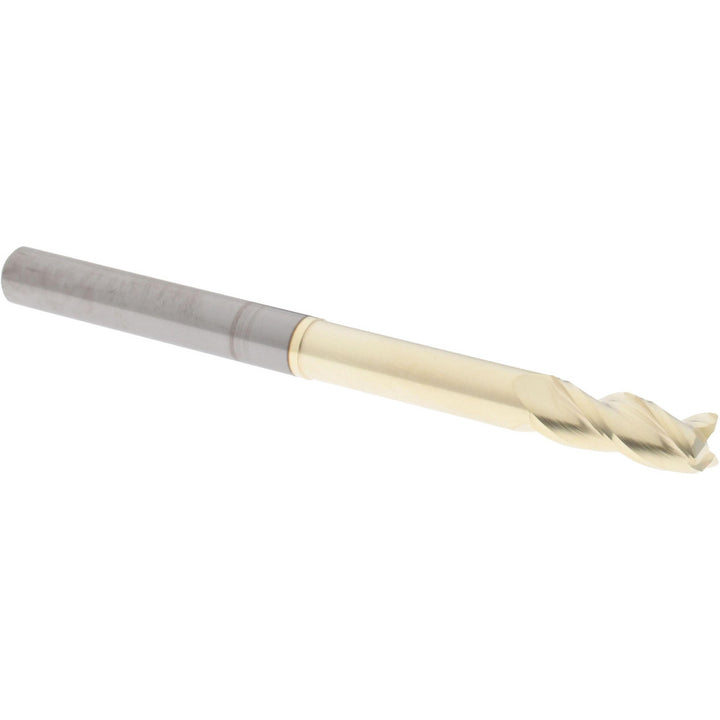

5/16" 3-Flute Solid Carbide Corner Radius End Mill, ZrN - Accupro 315464
MFR# 315464
$138.66List $168.87
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The Accupro 315464 is a 5/16 3-flute Solid Carbide (Micrograin) corner radius end mill with a ZrN finish for longer tool life. 13/16 length of cut, 4 overall length.
Specifications
CentercuttingYes
Coating finishZrN
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Length of cut in13/16
Length typeStub
Material gradeMicrograin
Mill diameter in5/16
Mill diameter tolerance+0.000000/-0.002000 in
Neck diameter0.2813
Number of flutes3
Overall length in4
Reach length in2-1/8
Shank diameter in5/16
Shank diameter tolerance-0.0001/-0.0004 in
Single or double endSingle
Variable helixNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
