Accupro

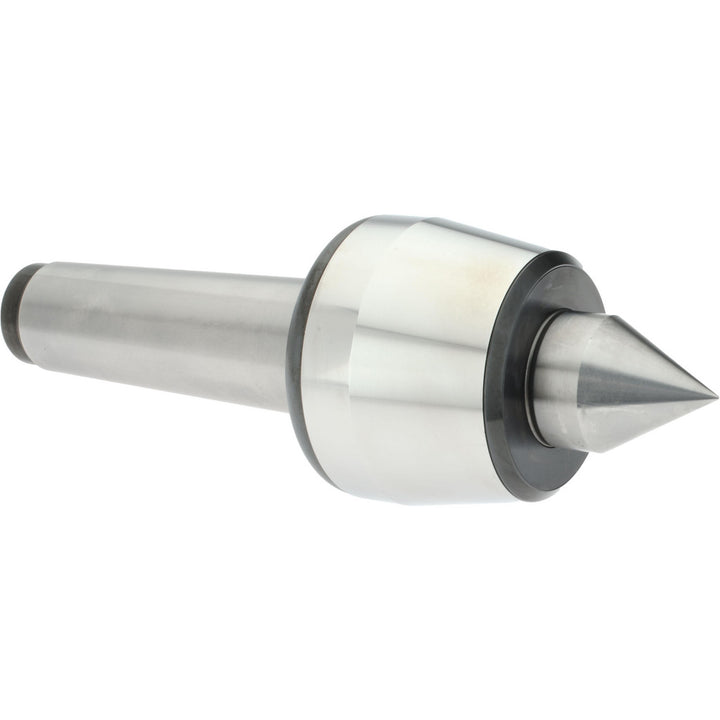

Lathe Center - Accupro 781014
MFR# 781014
$816.07List $1,024.38
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Accupro 781014 is a lathe center.
Specifications
Accuracy0.003mm
Carbide tipped pointNo
Head diameter (mm)88.00
Head length2.7559
Included angle60
Load capacity4409.25lb
Maximum rpm3000
Maximum workpiece weight kg2000.00
Maximum workpiece weight lb4409.25
Overall length (mm)256.30
Point diameter (mm)40.00
Point length (mm)50.50
Point styleStandard
Point to gauge line (mm)128.50
Shank length5.3543
Shank typeMorse Taper
Taper sizeMT5
