Accupro

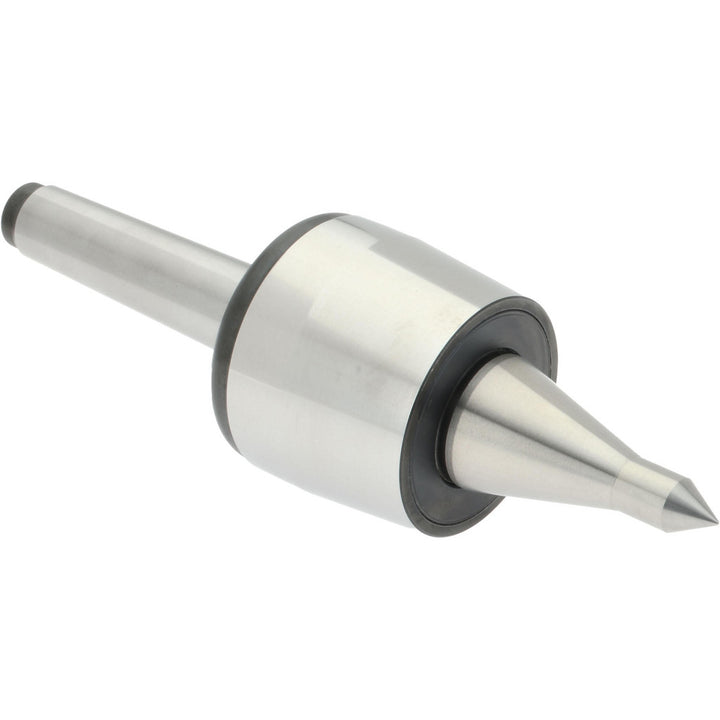

Lathe Center - Accupro 781016
MFR# 781016
$478.15List $600.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Accupro 781016 is a lathe center.
Specifications
Accuracy0.003mm
Carbide tipped pointNo
Head diameter (mm)50.00
Head length1.7126
Included angle60
Load capacity1102.31lb
Maximum rpm5000
Maximum workpiece weight kg500.00
Maximum workpiece weight lb1102.31
Overall length (mm)161.50
Point diameter (mm)25.00
Point length (mm)50.00
Point styleStandard
Point to gauge line (mm)99.50
Shank length2.6772
Shank typeMorse Taper
Taper sizeMT2
Tip diameter in10
Tip length0.7480
