Accupro

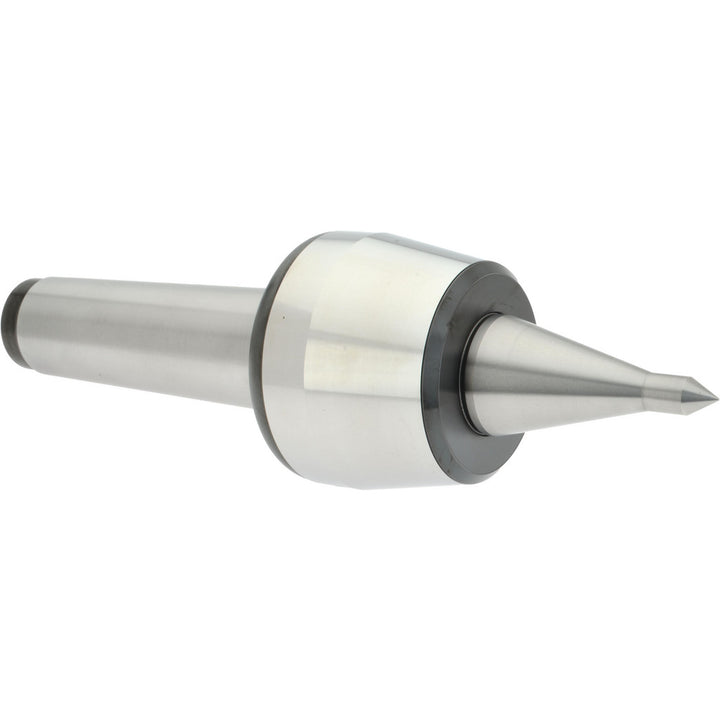

Lathe Center - Accupro 781019
MFR# 781019
$816.07List $1,024.38
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Accupro 781019 is a lathe center.
Specifications
Accuracy0.003mm
Carbide tipped pointNo
Head diameter (mm)88.00
Head length2.7559
Included angle60
Load capacity3306.94lb
Maximum rpm3000
Maximum workpiece weight kg1500.00
Maximum workpiece weight lb880.00
Overall length (mm)286.00
Point diameter (mm)40.00
Point length (mm)80.00
Point styleStandard
Point to gauge line (mm)158.00
Shank length5.3543
Shank typeMorse Taper
Taper sizeMT5
Tip diameter (mm)12.50
Tip length0.9252
