Accupro

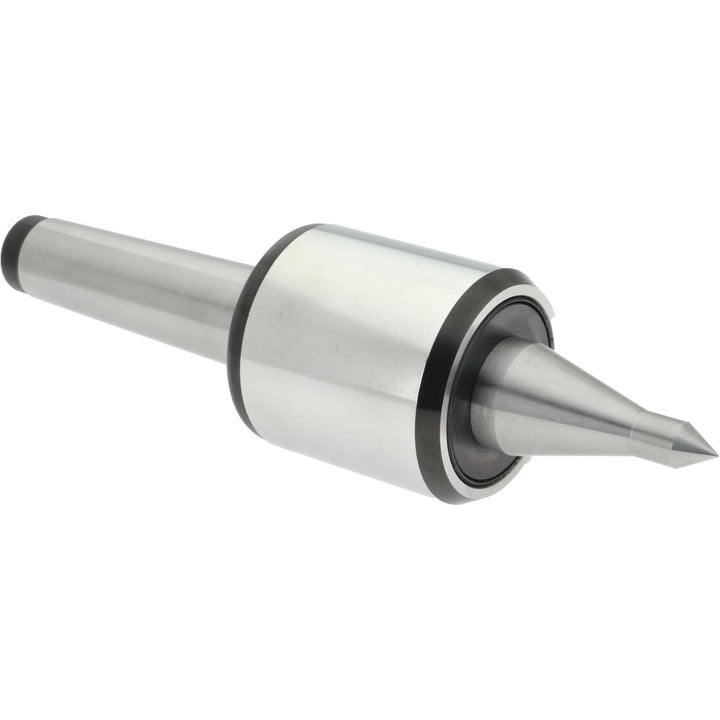

Lathe Center - Accupro 781029
MFR# 781029
$632.77List $794.28
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Accupro 781029 is a lathe center.
Specifications
Accuracy0.002mm
Carbide tipped pointNo
Head diameter (mm)66.00
Head length2.7953
Included angle60
Load capacity3086.47lb
Maximum rpm6000
Maximum workpiece weight kg1400.00
Maximum workpiece weight lb880.00
Overall length (mm)242.50
Point diameter (mm)30.00
Point length (mm)63.50
Point styleStandard
Point to gauge line (mm)139.80
Shank length4.2520
Shank typeMorse Taper
Taper sizeMT4
Tip diameter (mm)12.50
Tip length0.9055
