Accupro

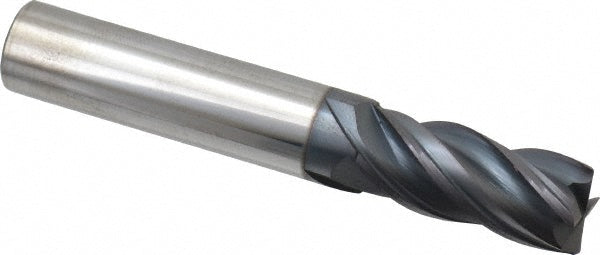

7/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Accupro 95168733
MFR# 95168733
$95.56List $116.38
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Accupro 95168733 is a 7/16 4-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. 1 length of cut, 2-3/4 overall length.
Specifications
CentercuttingYes
Chamfer angle45
Chamfer width0.0150
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix styleVariable
Length of cut in1
Length typeRegular
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in2-3/4
Shank diameter in7/16
Shank diameter tolerance+0.0001 to -0. 0004 in
Single or double endSingle
Variable helixYes
