Accupro

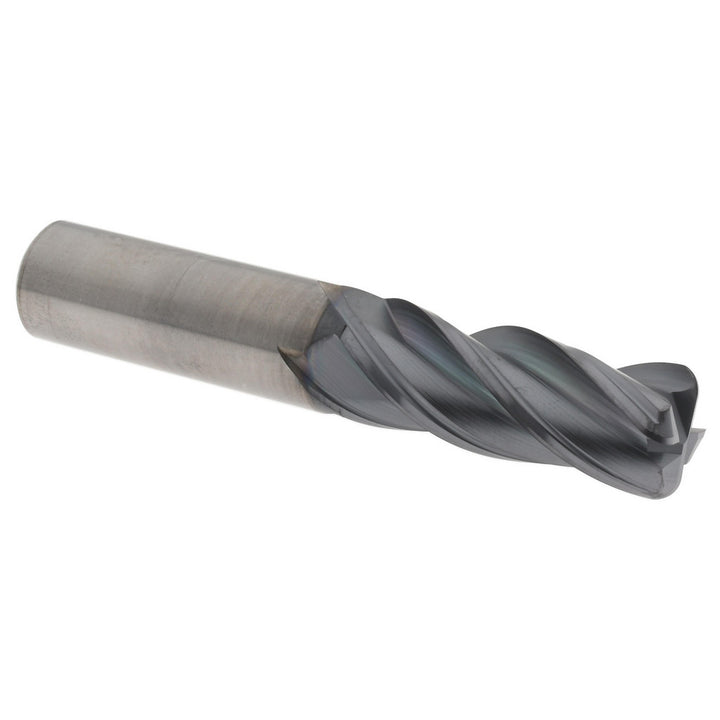

5/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Accupro 95168850
MFR# 95168850
$309.10List $376.45
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Accupro 95168850 is a 5/8 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 1-5/8 length of cut, 3-1/2 overall length.
Specifications
CentercuttingYes
Coating finishAlTiN
Corner radius0.1200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1-5/8
Length typeRegular
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000000/-0.002000 in
Number of flutes4
Overall length in3-1/2
Shank diameter in5/8
Shank diameter tolerance+0.0001/-0.0004 in
Single or double endSingle
Variable helixYes
