Accupro

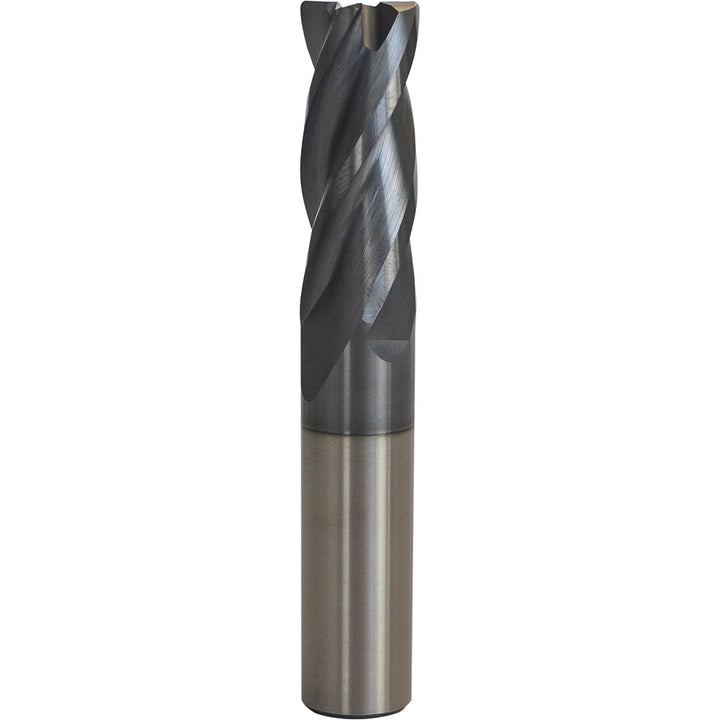

5/8" 4-Flute Solid Carbide Corner Radius End Mill, AlCrTiN - Accupro 95169659
MFR# 95169659Series VS
$233.49List $284.36
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingAlCrTiN
Description
The Accupro 95169659 is a 5/8 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrTiN finish for longer tool life. 3/4 length of cut, 3 overall length. Series VS.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlCrTiN
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in3/4
Length typeShort
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000000/-0.001000 in; +0.000000/-0.025000 mm
Number of flutes4
Overall length in3
Overall length tolerance+0.0400/-0.0000 in
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0048
Variable helixYes
Variable indexYes
