Accupro

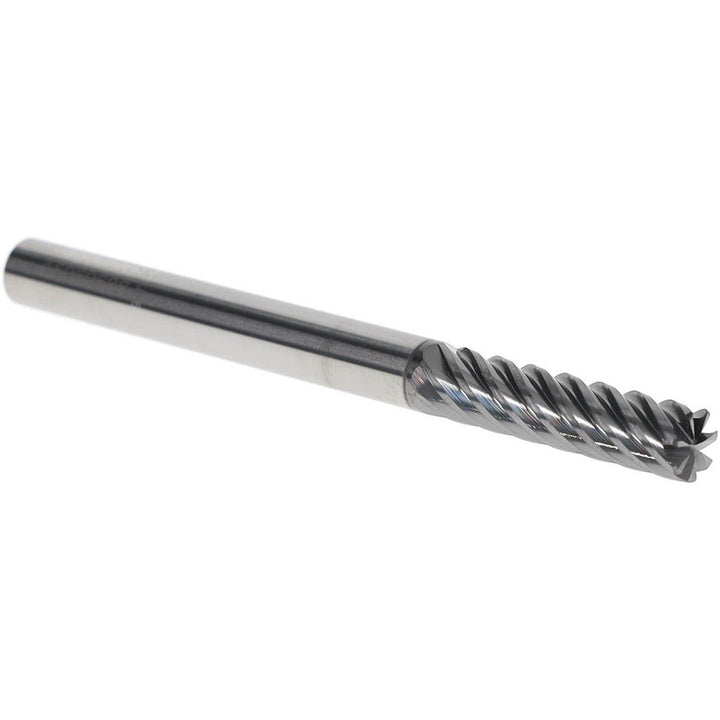

1/4" 7-Flute Solid Carbide Corner Radius End Mill, AlCrTiN - Accupro 95169794
MFR# 95169794Series HS
$54.88List $66.84
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes7
MaterialSolid Carbide
CoatingAlCrTiN
Description
The Accupro 95169794 is a 1/4 7-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrTiN finish for longer tool life. 1 length of cut, 3 overall length. Series HS.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishAlCrTiN
Corner radius0.0200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000000/-0.001000 in
Number of flutes7
Overall length in3
Shank diameter in1/4
Shank diameter tolerance+0.000/-0.002 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
