Accupro

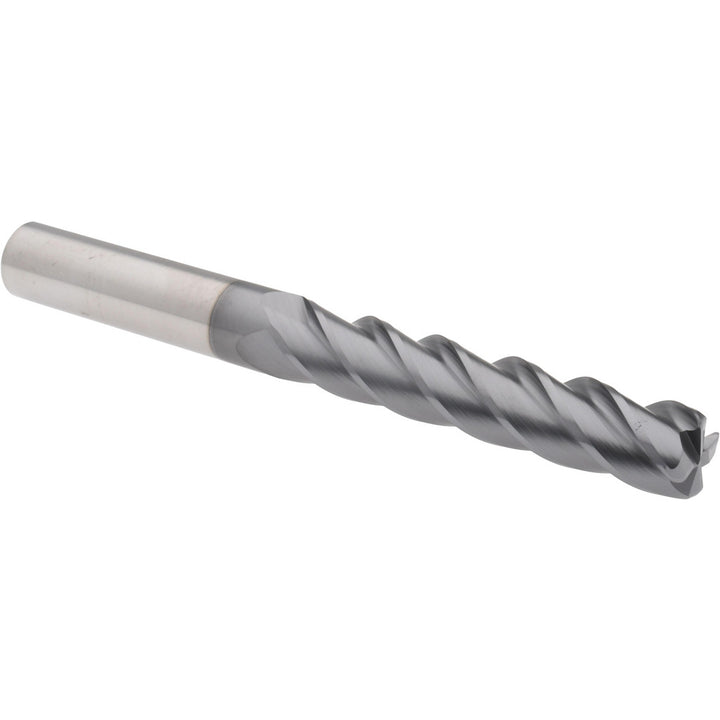

5/8" 4-Flute Solid Carbide Corner Radius End Mill, AlCrTiN - Accupro 95170084
MFR# 95170084Series HS
$198.96List $242.30
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingAlCrTiN
Description
The Accupro 95170084 is a 5/8 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrTiN finish for longer tool life. 3-1/4 length of cut, 6 overall length. Series HS.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlCrTiN
Corner radius0.0900
Corner radius tolerance+0.00200 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in3-1/4
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000000/-0.001000 in
Number of flutes4
Overall length in6
Shank diameter in5/8
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
