Accupro

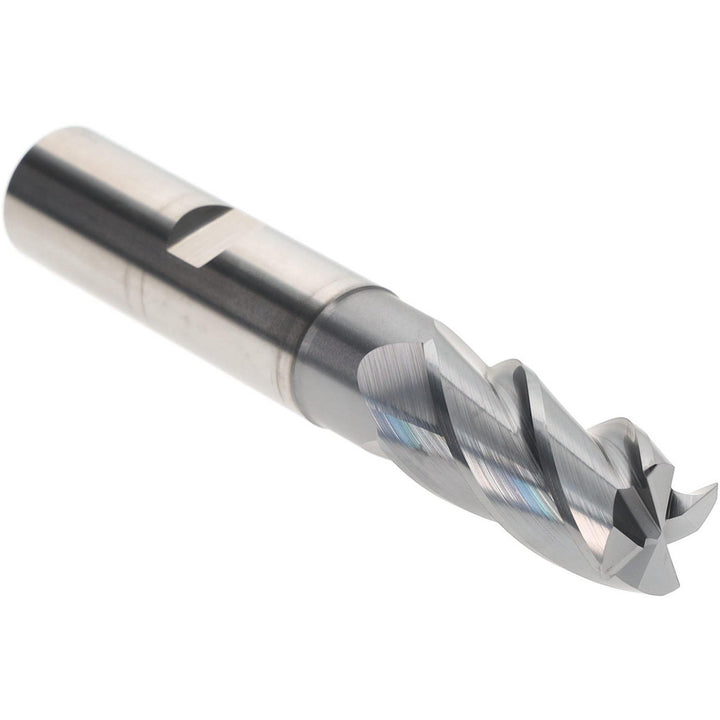

3/4" 4-Flute Solid Carbide Corner Radius End Mill, AlCrTiN - Accupro 95172633
MFR# 95172633Series ST
$388.44List $473.07
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingAlCrTiN
Description
The Accupro 95172633 is a 3/4 4-flute Solid Carbide (Ultra Fine Micrograin) corner radius end mill with a AlCrTiN finish for longer tool life. 1-1/2 length of cut, 4-1/2 overall length. Series ST.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlCrTiN
Coolant throughNo
Corner radius0.0300
Corner radius tolerance+0.00000 to -0.00100 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Length of cut in1-1/2
Length typeRegular
Material gradeUltra Fine Micrograin
Mill diameter in3/4
Mill diameter tolerance+0.000000/-0.001000 in
Number of flutes4
Overall length in4-1/2
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeSmart-Weldon
Single or double endSingle
Tir maximum0.0004
Variable helixNo
Variable indexNo
