Accupro

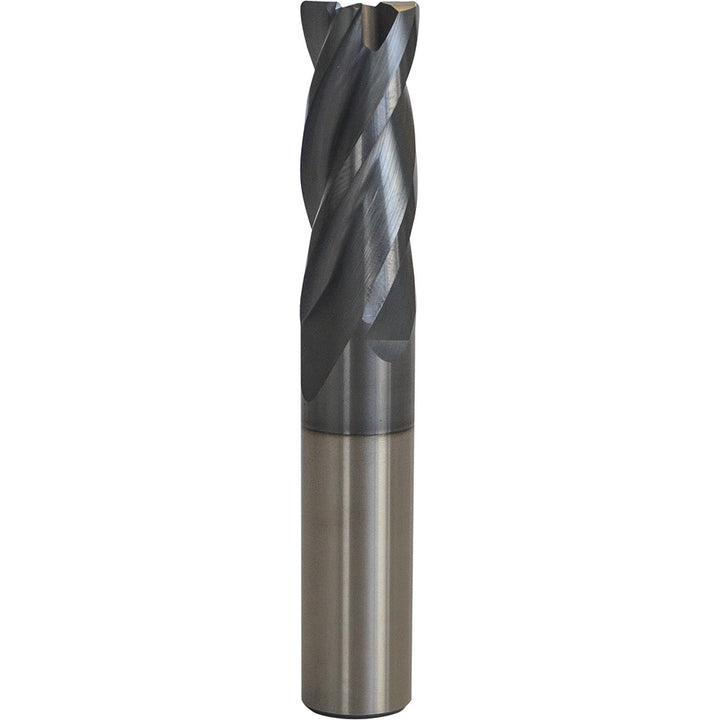

1/8" 4-Flute Solid Carbide Square End Mill, AlCrTiN - Accupro 95172688
MFR# 95172688Series VS
$35.51List $43.25
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingAlCrTiN
Description
The Accupro 95172688 is a 1/8 4-flute Solid Carbide (Micrograin) square end mill with a AlCrTiN finish for longer tool life. 1/4 length of cut, 1-1/2 overall length. Series VS.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlCrTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut in1/4
Length of cut range0.2000 - 0.3000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/8
Number of flutes4
Overall length in1-1/2
Overall length tolerance+0.040/-0.000 in
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Tir maximum0.0005
Variable helixYes
Variable indexYes
