Allied Machine and Engineering

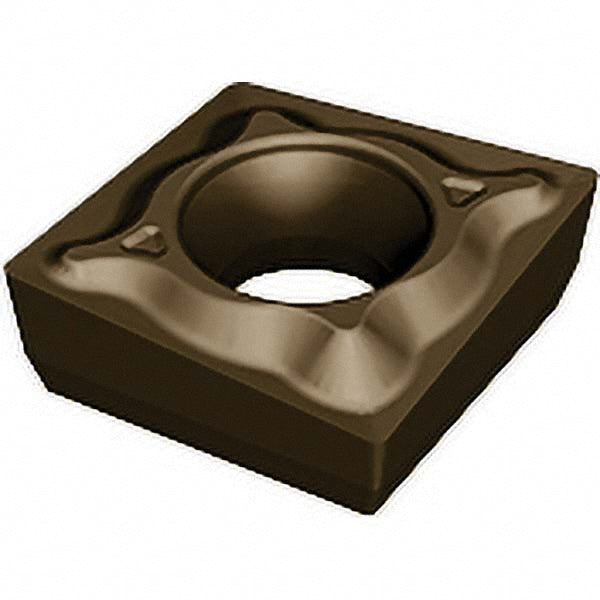

0.5310" IC Carbide Insert, Grade CTCP435 - Allied Machine and Engineering 11821950
MFR# 11821950Series EC 25
$25.37List $29.41
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCTCP435
MaterialCarbide
Description
The Allied Machine and Engineering 11821950 is a carbide indexable insert, grade CTCP435. Suited for cast iron, stainless steel, steel.
Specifications
ChipbreakerEN
Corner radius0.0160
Hole diameter0.2090in
Included angle degree88
Inscribed circle0.5310
Insert handNeutral
Insert materialCarbide
Insert size130404
Insert size code13
Insert styleXCNT
Manufacturer gradeCTCP435
Primary workpiece materialCast Iron; Stainless Steel; Steel
Relief angle7
ShapeSquare
StandardsISO 9001:2015
Thickness0.1870
Width0.492
