Allied Machine and Engineering

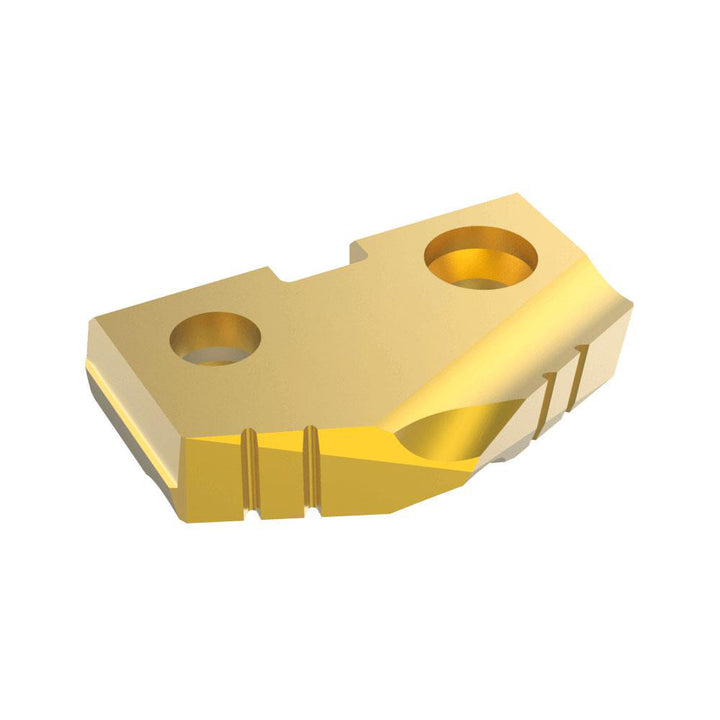

Solid Carbide Insert, Grade C5 (P40), TiN - Allied Machine and Engineering 1C52T-0100
MFR# 1C52T-0100Series T-A
$78.53List $90.61
Save 13%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeC5 (P40)
MaterialSolid Carbide
CoatingTiN
Description
The Allied Machine and Engineering 1C52T-0100 is a solid carbide indexable insert, grade C5 (P40), TiN coated. Suited for steel, hard material.
Specifications
Coating finishTiN
Diameter inch fraction1
Insert materialSolid Carbide
Manufacturer gradeC5 (P40)
Material gradeC5
Point angle132
Primary workpiece materialSteel; Hard Material
Series code seat size2
Thickness0.1875
