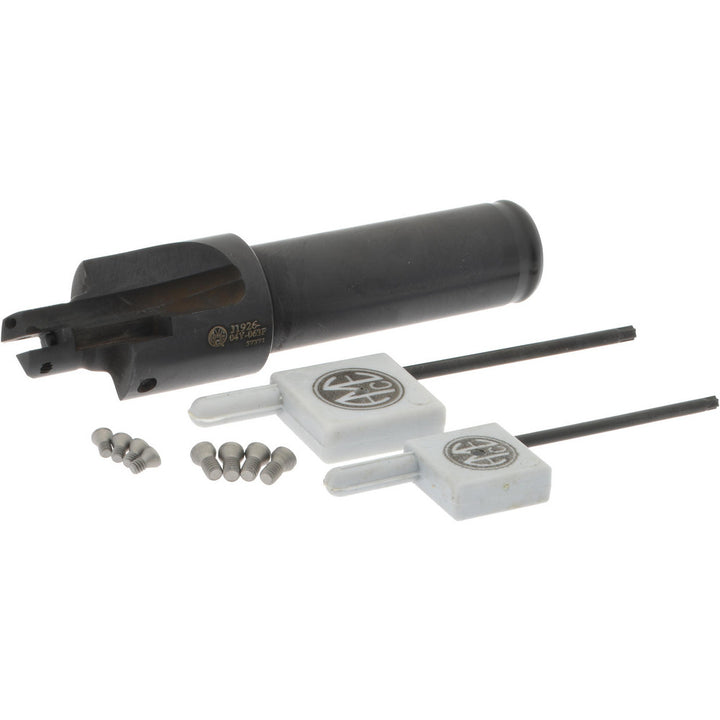

Indexable Counterbores & Porting Tools - Allied Machine and Engineering J1926-04Y-063F
MFR# J1926-04Y-063FSeries AccuPort 432
$574.44List $600.37
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering J1926-04Y-063F indexable counterbores & porting tools. Suited for universal. Series AccuPort 432.
Specifications
CoatedCoated
Compatible insert size code45YH-.386; 4C1YH-.386
Compatible insert styleJ1926
Head length1.5270
Number of porting inserts2
Overall length3.4020
Pilot diameter0.3860
Pilot insert typeSpade Blade Insert
Porting angle12
Porting angle length0.1060
Porting diameter0.4900
Port standard designationIS0 11926-1; SAE J1926-1/MS-16142; IS0 11926-1; SAE J1926-1/MS-16142
Port thread size7/16-20; 7/16-20
Primary workpiece materialUniversal
Seal angle12
Seal angle length0.106in
Shank diameter in0.625in; 15.9mm
Shank length1.8750
Spotface diameter0.8410
Through coolantNo; Yes
Tube dash number4
