Allied Machine and Engineering

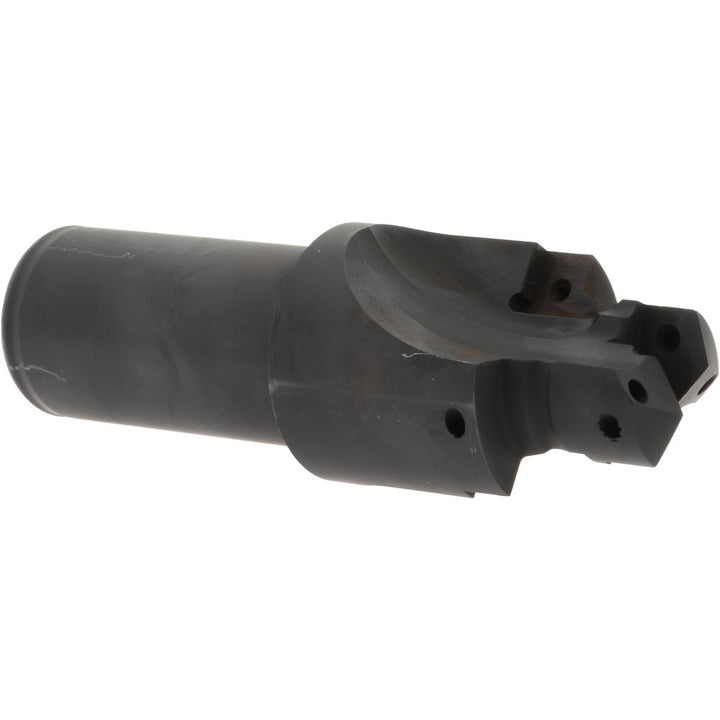

Indexable Counterbores & Porting Tools - Allied Machine and Engineering J1926-122-125F
MFR# J1926-122-125FSeries AccuPort 432
$671.70List $702.88
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering J1926-122-125F indexable counterbores & porting tools. Suited for universal. Series AccuPort 432.
Specifications
CoatedCoated
Compatible insert size code452H-25; 4C12H-25
Compatible insert styleJ1926
Head length2.6400
Number of porting inserts2
Overall length4.9210
Pilot diameter0.9840
Pilot insert typeSpade Blade Insert
Porting angle15
Porting angle length0.1380
Porting diameter1.1500
Port standard designationIS0 11926-1; SAE J1926-1/MS-16142; IS0 11926-1; SAE J1926-1/MS-16142
Port thread size1-1/16-12; 1-1/16-12
Primary workpiece materialUniversal
Seal angle15
Seal angle length0.318in
Shank diameter in1.25in; 31.8mm
Shank length2.2810
Spotface diameter1.6570
Through coolantNo; Yes
Tube dash number12
