Allied Machine and Engineering

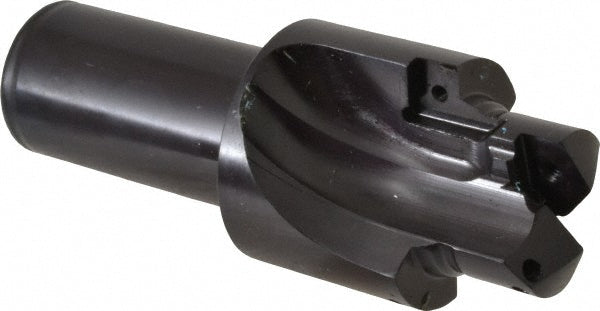

Indexable Counterbores & Porting Tools - Allied Machine and Engineering J1926-162-125F
MFR# J1926-162-125FSeries AccuPort 432
$697.02List $741.38
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering J1926-162-125F indexable counterbores & porting tools. Suited for universal. Series AccuPort 432.
Specifications
CoatedCoated
Compatible insert size code452H-1.231; 4C12H-1.231
Compatible insert styleJ1926
Head length2.6400
Number of porting inserts2
Overall length4.9210
Pilot diameter1.2310
Pilot insert typeSpade Blade Insert
Porting angle15
Porting angle length0.1380
Porting diameter1.4000
Port standard designationIS0 11926-1; SAE J1926-1/MS-16142; IS0 11926-1; SAE J1926-1/MS-16142
Port thread size1-5/16-12; 1-5/16-12
Primary workpiece materialUniversal
Seal angle15
Shank diameter in1.25 in; 31.8 mm
Shank length2.2810
Spotface diameter1.9070
Through coolantNonThrough Coolant; Normal Pressure
Tube dash number16
