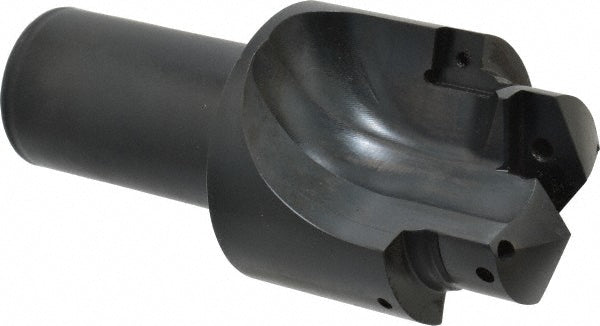

Indexable Counterbores & Porting Tools - Allied Machine and Engineering J1926-243-150F
MFR# J1926-243-150FSeries AccuPort 432
$744.29List $778.83
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering J1926-243-150F indexable counterbores & porting tools. Suited for universal. Series AccuPort 432.
Specifications
CoatedCoated
Compatible insert size code1C53A-45.5; 453H-45.5
Compatible insert styleJ1926
Head length3.0620
Number of porting inserts2
Overall length5.7500
Pilot diameter1.7910
Pilot insert typeSpade Blade Insert
Porting angle15
Porting angle length0.1380
Porting diameter1.9650
Port standard designationIS0 11926-1; SAE J1926-1/MS-16142; IS0 11926-1; SAE J1926-1/MS-16142
Port thread size1-7/8-12; 1-7/8-12
Primary workpiece materialUniversal
Seal angle15
Shank diameter in1.5 in; 38.1 mm
Shank length2.6880
Spotface diameter2.5590
Through coolantNonThrough Coolant; Normal Pressure
Tube dash number24
