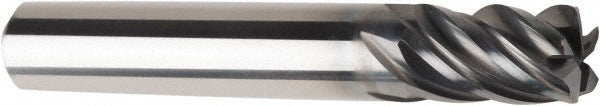

5-Flute Solid Carbide Corner Radius End Mill, AlCrN - American Tool Service 520-2500-020
MFR# 520-2500-020
$35.24List $44.42
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingAlCrN
Description
The American Tool Service 520-2500-020 is a 5-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrN finish for longer tool life. 1/2 length of cut, 2 overall length.
Specifications
CentercuttingYes
Coating finishAlCrN
Coolant throughNo
Corner radius0.0200
Corner radius tolerance+0.00020 to -0.00020 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1/2
Length typeShort
Material gradeMicrograin
Mill diameter tolerance+0.000000/-0.002000 in
Number of flutes5
Overall length in2
Overall length tolerance0.0600 in
Shank diameter in1/4
Shank diameter tolerance+0.0000/-0.0005 in
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0010
