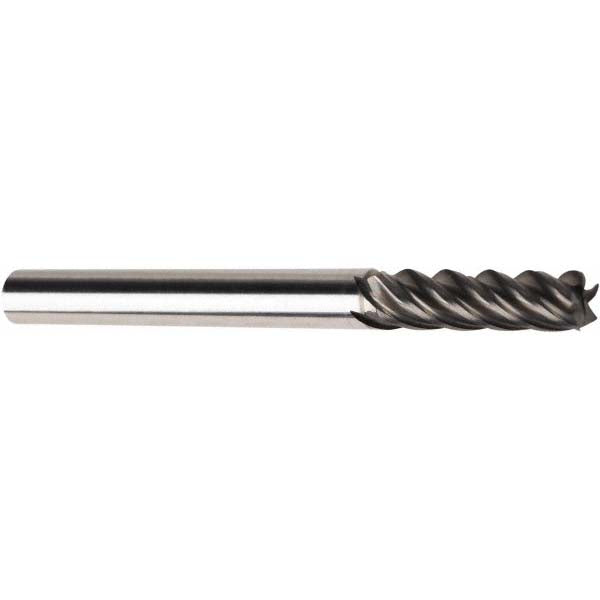

0.1875" 5-Flute Solid Carbide Single End Mill, AlCrN - American Tool Service 710-1875

American Tool Service

0.1875" 5-Flute Solid Carbide Single End Mill, AlCrN - American Tool Service 710-1875

MFR# 710-1875Series 710

$43.97
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingAlCrN

Description

The American Tool Service 710-1875 is a 0.1875 5-flute Solid Carbide (Micrograin) single end mill with a AlCrN finish for longer tool life. 5/8 length of cut. Series 710.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlCrN
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in5/8
Length typeRegular
Material gradeMicrograin
Mill diameter0.1875
Mill diameter frac in3/16
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes5
Overall length tolerance+0.060/-0.060 in
Shank diameter in3/16
Shank diameter tolerance+0.0000/-0.0005 in
Shank typeStraight-Cylindrical
Variable helixNo
